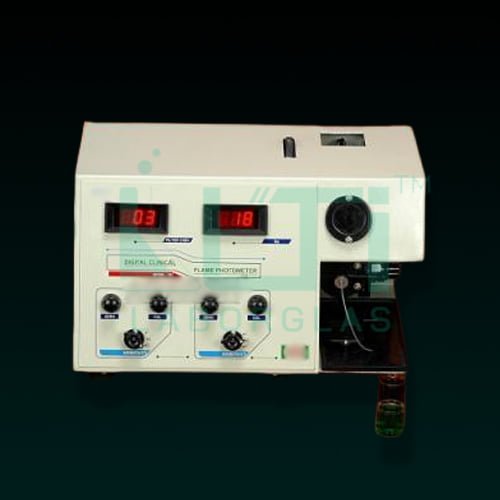

10770-Flamephotometer Digital Clinical


TECHNICAL SPECIFICATION

• RANGE
•
• Sodium (Na)
• serum 0-200 meq/I
• Urine 0-200 meq/I
•
• Lithium (Li)   :
• Serum 0-2 meq/I (Optional)
•
• Potassium (K)     :
• serum 0-10 meq/I                                                          :
• Urine 0-100 meq/I
• Calcium (Ca)    :
• Urine 0-10 meq/ I (Optional)

• READOUT                                  Dual 2½ digit bright red LED display
• ACCURACY                               + 2% up to 40 ppm, + 5% above 40 ppm
• IGNITION SYSTEM                In –built electronic ignition by press of a Knob
• DIMENSIONS                             365 x 245 x 220mm (Approx.)
• WEIGHT                                      10Kg. (Approx.)
• MEASUREMENT SYSTEM     Simultaneous measurement of 2 elements on Dual LED
• REPEATABILITY                       + 2 Counts
• DETECTOR                                Silicon Photodiode
• FITLER                                        Narrow band interference glass filters
• NEBULIZER                               Black bakelite, axial flow type
•  FLAME SYSTEM                       LPG & dry oil free air
• WARM UP TIME                        10 minutes
• POWER                                       230V + 10% AC, 50Hz.

 COMPRESSOR UNIT

• AIR SUPPLY          By oil free mini compressor unit with pressure regulator
• COMBUSTION GAS LPG        Controlled by precision regulator
• POWER                                       230V + 10% AC, 50Hz.
• DIMENSIONS                             275W X 192H X 240 D mm (Approx.)
• WEIGHT                                      8Kg. (Approx.)
